Model: BF-450
Sealing and cutting machine BF-450 BF-550 BF-650
Features:

The machine adopts the most advanced electrical components imported, with safety protection and alarm device, to ensure the stability of the machine running at high speed, all kinds of setup and operation can be easily completed. With the design of side seal, the packaging length of t...

Get a quote for free

Performance feature:

  • * The machine adopts imported advanced electrical components, with safety protection and alarm device, to ensure the stability of the machine running at high speed, all kinds of setup and operation can be easily completed.

  • * Side seal design for dishes, unlimited packaging length, sealing line height can be adjusted according to the height of the packaging.

  • * The sealing knife adopts the anti-stick and anti-high temperature alloy knife with The coating of American Social Gottafron, the sealing will not crack, not coking, no smoke and no pollution.

  • * Equipped with imported photoelectric detection, horizontal and vertical detection of each group, easy to switch and choose, for thin and size of the package, can easily complete the sealing packaging operation.

  • * When the size of the package changes, the adjustment is very simple, do not need to change the mold and bag maker

  • * The thermostat adopts the original "Omron" digital display thermostat, with PD function built in. The sealing knife temperature is extremely sensitive and accurate, and can be set at will. There is no need to worry about the temperature is not accurate damage products, sealing knife itself also has automatic protection function, effectively prevent the wrong cut packaging

  • * The whole set of machines are truly connected with the unmanned operation of the production line.


Application area:

It is suitable for large volume shrink packaging in software, food, cosmetics, printing, pharmacy, beverage, hardware and other industries, such as: wood floor, photo frame, aluminum profiles of wider and longer items.

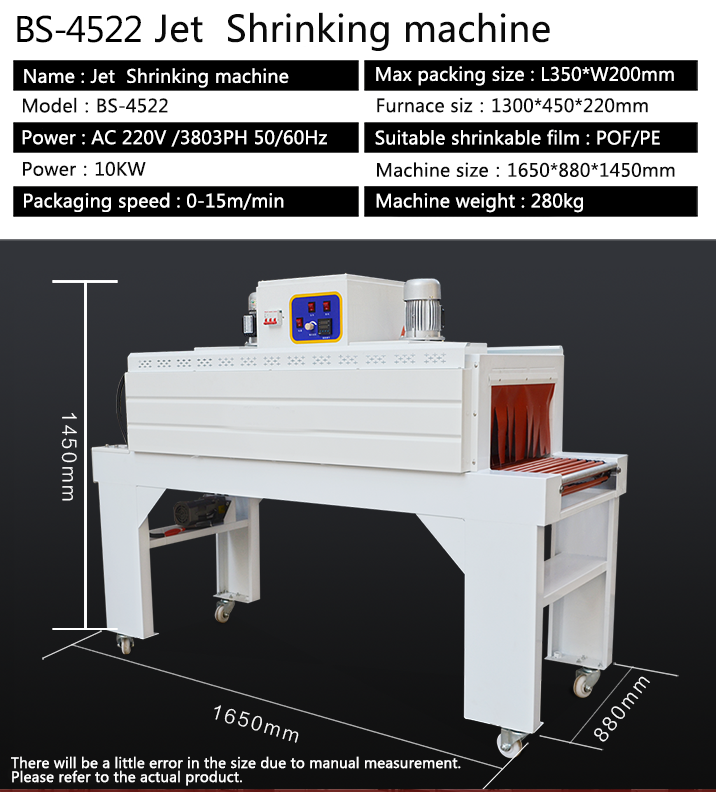

BA-4522n adaptive shrinking machine performance characteristics


  • * Electronic governor is adopted for speed regulation, and the conveying speed can be adjusted arbitrarily to ensure the conveying smoothness and good shrinkage effect;

  • * Digital display computer intelligent temperature control, small temperature difference stable and reliable, low noise, long life;

  • * High quality stainless steel heating tube, heating tube has two-way heat circulation air inside the radiator, the heat is uniform and constant;

  • * Good insulation effect, set power off function to avoid heat dissipation, save electricity.



Technical parameters:


model

BF-450

BF-550

BF-650

BF-750

BF-950

BF-1050

package size

≤400mm(H)≤200

≤500mm(H)≤200

≤600mm(H)≤200

≤700mm(H)≤200

≤900mm(H)≤200

≤1000mm(H)≤200

sealing size

(W+H)≤450mm

(W+H)≤550mm

(W+H)≤650mm

(W+H)≤750mm

(W+H)≤950mm

(W+H)≤1050mm

packaging speed

15-30包/min

15-30包/min

15-30包/min

15-30包/min

15-30包/min

15-30包/min

power source

220V/50HZ

220V/50HZ

220V/50HZ

220V/50HZ

220V/50HZ

220V/50HZ

power

1.35KW

1.5KW

1.5KW

2KW

2KW

2.5KW

electric

16A

16A

16A

18A

18A

18A

air source

5.5kg/cm³

5.5kg/cm³

5.5kg/cm³

5.5kg/cm³

5.5kg/cm³

5.5kg/cm³

weight

300kg

350kg

400kg

450kg

550kg

650kg

machine size

1650*800*1460mm

1810*980*1460mm

2010*1080*1460mm

2310*1280*1460mm

2510*1480*1460mm

2710*1680*1460mm
